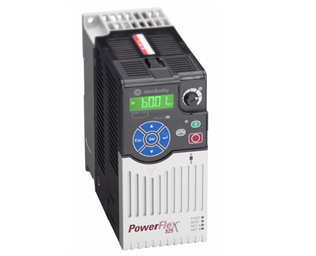

PowerFlex 525 ()
Mã sản phẩm
Nhà sản xuất
Bảo hành:
Tình trạng: Còn hàng
Xuất xứ:
Thông số kỹ thuật
|
PowerFlex® 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration. This next generation of compact drives offers embedded EtherNet/IP™ communications, USB programming, and standard safety features. PowerFlex 525 drives, which offer a power rating of 0.4...22 kW (0.5...30 Hp) with global voltage classes of 100...600V, provide a variety of motor control and flexible mounting options. PowerFlex 525 AC drives operate at temperatures as high as 70 °C (158 °F), and they are ideal for applications such as conveyors, fans, pumps, and mixers. |
Features
Power ratings:
100...120V: 0.4…1.1 kW / 0.5…1.5 Hp / 2.5…6 A
200...240V: 0.4…15 kW / 0.5…20 Hp / 2.5…62.1 A
380...480V: 0.4…22 kW / 0.5…30 Hp / 1.4…43 A
525...600V: 0.4…22 kW / 0.5…30 Hp / 0.9 … 32 A
Modular design features an innovative, removable control core that allows simultaneous installation and configuration
Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
Embedded EtherNet/IP™ supports seamless integration into the Logix environment and EtherNet/IP networks
Intuitive software helps you simplify programming
Supports faster drive configuration using a standard USB interface
Dynamic LCD human interface module (HIM) supports multiple languages and features descriptive QuickView™ scrolling text
Helps you reduce energy costs with Economizer mode, energy monitoring features
IP20 Open/NEMA, IP30 NEMA/UL Type 1 (with conduit kit), DIN rail (frames A,B and C)
Supports faster configuration with application-specific parameter groups in the AppView™ tool for applications such as conveyors, mixers, pumps, and fans
Lets you save custom configurations in the CustomView™ tool
Operates in high ambient temperatures as high as 50 °C (122 °F), or as high as 70 °C (158 °F) with current derating when using a control module fan kit
Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm air-flow gap
Embedded Safety Features
Safe Torque-Off feature is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
Products
25B PowerFlex 525 AC Drives
Frequently Viewed Publications
| Title | Number | Language |
|---|---|---|
| PowerFlex 525 Brochure | 520-BR001 |  CS, DE, EN, ES, FI, FR, IT, JA, KO, PL, PT, RU,SV, TR, ZC |
| PowerFlex Family of Low Voltage AC Drives Brochure | PFLEX-BR008 | CS, EN, ES, FR, IT, JA, KO, RU, TR |
| PowerFlex Low Voltage Selection Guide | PFLEX-SG002 | CS, DE, EN, ES, FR, IT, JA, KO, PL, PT, RU, TR,ZC |
| PowerFlex 525 AC Drive Technical Data | 520-TD001 | EN |
| PowerFlex 525 Adjustable Frequency AC Drive User Manual | 520-UM001 | EN |
| More PowerFlex 525 AC Drives publications in Literature Library | All Languages | |
Product Catalog
Find catalog numbers, certifications, and specifications.
